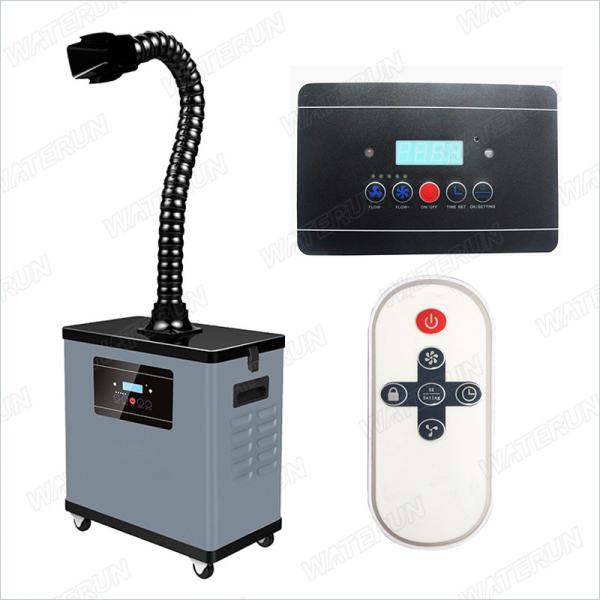

Smart Digital Display With Remote Control Portable Best Solder Fume Extractor
Specifications:
| Model | F6001D | F6002D |
| Power | 80W | 200W |
| Noise | <55 dB | <55 dB |
| Systemic Flow | 235 m3/h | 2x 150m3/h |
| Air Velocity | 17 m/s | 2 x 11 m/s |
| Filter Size | Pre-filter: 365 x 175 x 6mm
Middle Filter 365 x 175 x 55mm
Main Filter 385 x 195 x 250mm; | Pre-filter: 365 x 175 x 6mm
Middle Filter 365 x 175 x 55mm
Main Filter 385 x 195 x 250mm; |
| Gross Weight | 16kg | 17kg |
| Cabinet Dimensions | 425 x 250 x 410mm | 425 x 250 x 410mm |
| Package Dimensions | Body: 54 x 35 x 58cm Arm Kits:42 x 41 x 20cm | Body: 54 x 35 x 58cm Arm Kits: 46 x 42 x 20cm |
| Filtering Efficiency | 0.3um 99.97% |
| Electrical | 110V / 220V |
| Filter Layer | 3 Layers |
| Remote Control | Included |
| Arm Dimension | Diameter 75mm x Length 140cm |
| Packing List | Main Unit: 1 piece
Power Cord: 1 piece
Arm & nozzle: 1 set
Operation Instruction: 1 piece
Pre-Filter: 5pc (4pieces inside machine) Middle Filter: 1pc (Included in machine) Main Filter: 1pc (Included in machine) |
Description:
The portable fume extractor is an excellent safety machine used for capture and filtration of airborne contaminants.They are affordable and can be easily moved to the places in the shop where they are needed the most.Soldering is one of the key activities in electronics.The solder fumes, soldering smokes released by the solder are not healthy at all;therefore, using our commercial fume extractor which with quite high cost performance is your ideal choice.
This source-capture fume extractor features universal casters for easy mobility, a self-supportive flex arm and a filter block alarm, a small footprint, and high-quality filtration media.The Portable Floor Fume Extractor with 3 layers filter media to be housed inside the filter chamber for applications that emit both particulates and fumes.
Features:
1.With the intelligent control panel and digital display, operation becomes easy and simple;
2.With the remote control, you can control the machine from a distance;
3.Truly sensitive and effective Filter Clogging Alarm system reminds you to replace the filter in time;
4.Wheels with brake make the movement easy and flexible.
Application :
Our fume purifier is a purification equipment mainly for industrial application,which can be used in manual soldering,solder pots, soldering robot,soldering station, and other industrial welding and laser processing to collect and purify the fumes generated during the production,and protecting the environment and operation's health. Fume extraction systems are also useful for extracting potentially noxious fumes from the use of certain adhesives and chemicals on the workbench,eyelash extensions,dye hair, nail art.
Additional Information
| Available Filter Efficiencies | Initial Filter
For filter large particles of above 50µm
Second Filter
For filter particles above 0.3µm, filtering efficiency rate 99.97%.
HEPA Filter
For dust particles above 0.3µm, filtering efficiency rate 99.97%,
For remove harmful gases, filtering efficiency rate above 95%; |
| Filter Replacement Period | Pr-Filter: 1 week to 1 month Middle Filter: 3 months Main Filter: 6 months Anyway, you can adjust it as per the exact pollutants generated in different Environment; |
